Planet object

class gfeatpy.Planet(self: gfeatpy._core.Planet)

Bases: pybind11_object

This class defines a global variable that stores the properties of the central body that is under analysis

property C20

Unnormalized flattening coefficient

property ae

Equatorial radius, or Brillouin sphere [m]

property mu

Standard gravitational parameter [m³/s²]

property rho_e

Mean crustal density [kg/m³]

property rho_w

Water density at Sea Level for EWH [kg/m³]

property theta_dot

Angular rotational velocity [rad/s]

from gfeatpy import planet    # mind the lower case

# Asign central planetary body constants to Mars
planet.mu = 42.83e12
planet.ae = 3396.2e3
planet.C20 = -1960.45e-6
planet.theta_dot = 7.088e-5
planet.rho_e = 2582

Gravity module

The gravity module provides different tools to handle gravity field data.

class gfeatpy.gravity.AOD1B(self: gfeatpy._core.gravity.AOD1B)
get(self: gfeatpy._core.gravity.AOD1B, datetime: gfeatpy._core.gravity.DateTime, type: gfeatpy._core.gravity.AOD1BType) → gfeatpy._core.gravity.SphericalHarmonics

Function that retrieves the SphericalHarmonics object associated to the AOD1B set indicated by the input parameters.

Parameters:

  • datetime (DateTime) – Epoch associated to the solution (note that they are provided every 3h).

  • type (AOD1BType) – Stokes coefficient set type from the four different possibilities provided.

Returns:

Object containing the associated Stokes coefficients.

Return type:

SphericalHarmonics

load(self: gfeatpy._core.gravity.AOD1B, filename: str) → gfeatpy._core.gravity.AOD1B

Function that loads an AOD1B daily .asc file into the AOD1B class.

Parameters:

filename (string) – Path to AOD1B .asc file.

Returns:

AOD1B object with loaded data.

Return type:

AOD1B

enum gfeatpy.gravity.AOD1BType

Enumeration that defines the Stokes coefficients set to be retrieved from AOD1B data.

ATM

Difference between vertically integrated density of the atmosphere and the corresponding mean field.

OCN

Difference between the water column contribution to ocean bottom pressure and the corresponding mean field.

GLO

Sum of ATM and OCN mass anomalies.

OBA

Sum of the water column contribution to the ocean bottom pressure anomalies (OCN) and the atmospheric contribution to ocean bottom pressure anomalies.

class gfeatpy.gravity.BaseFunctional

BaseFunctional is an abstract class that serves as parent class to implement different gravity field functionals. For this purpose, it contains a function degree_dependent_factor that is overloaded by the child classes.

It is employed internally in both the Global Spherical Harmonics Synthesis and the computation of degree variances. This allows for code modularity and simplifies the implementation of the different functionals.

Inheritance diagram of gfeatpy.gravity.GeoidHeight, gfeatpy.gravity.GravityAnomaly, gfeatpy.gravity.EquivalentWaterHeight
class gfeatpy.gravity.DateTime(self: gfeatpy._core.gravity.DateTime, year: SupportsInt | SupportsIndex, month: SupportsInt | SupportsIndex, day: SupportsInt | SupportsIndex, h: SupportsInt | SupportsIndex = 0, m: SupportsInt | SupportsIndex = 0, s: SupportsInt | SupportsIndex = 0)

Class that defines date and time from calendar format.

Constructor for DateTime object.

Parameters:

  • year (int)

  • month (int)

  • day (int)

  • hours (int)

  • minutes (int)

  • seconds (int)

class gfeatpy.gravity.EquivalentWaterHeight(self: gfeatpy._core.gravity.EquivalentWaterHeight, smoothing_radius: SupportsFloat | SupportsIndex)

Bases: BaseFunctional

EquivalentWaterHeight class defines the degree common terms for computation of EWH (Wahr, 1998).

\[f(l) = \frac{a_e \rho_c W_l}{3 \rho_w} \frac{2l+1}{1+k_l'}\]

The class also include the possibility to apply Gaussian smoothing with an input smoothing radius (Jekeli, 1981). The computation of the SH coefficients of the averaging function \(W_l\) follows the continuous fraction approach proposed by Piretzidis (2019).

Inherits from:

BaseFunctional

Constructor for EquivalentWaterHeight.

Parameters:

smoothing_radius (float) – Value at which the Gaussian spatial smoothing kernel decays to 1/2 of the initial value.

Example

Create an instance with 200 km smoothing radius:

ewh = EquivalentWaterHeight(200e3)
class gfeatpy.gravity.GeoidHeight(self: gfeatpy._core.gravity.GeoidHeight)

Bases: BaseFunctional

GeoidHeight class defines the degree common terms for computation of geoid height.

\[f(l) = a_e\]

Constructor for GeoidHeight.

Example

Create a BaseFunctional instance for geoid heights:

geoid_height = GeoidHeight()
class gfeatpy.gravity.GravityAnomaly(self: gfeatpy._core.gravity.GravityAnomaly)

Bases: BaseFunctional

GravityAnomaly class defines the degree common terms for computation of gravity anomalies (in milligals).

\[f(l) = 10^5 \frac{\mu}{a_e^2} (l-1)\]

Constructor for GravityAnomaly.

Example

Create a BaseFunctional instance for gravity anomalies:

gravity_anomaly = GravityAnomaly()
class gfeatpy.gravity.GravityField(self: gfeatpy._core.gravity.GravityField, l_max: SupportsInt | SupportsIndex)

Bases: SphericalHarmonics

This is a derived class from SphericalHarmonics that includes functionality to load data from .gfc files (see ICGEM website).

Contructor for GravityField object.

Parameters:

l_max (int) – Cut-off degree.

load(self: gfeatpy._core.gravity.GravityField, filename: str) → gfeatpy._core.gravity.GravityField

This function loads gravity field data from a .gfc file into this object.

Parameters:

filename (string) – Path to .gfc file.

Returns:

Object with loaded gravity field.

Return type:

GravityField

class gfeatpy.gravity.SphericalHarmonics(self: gfeatpy._core.gravity.SphericalHarmonics, l_max: SupportsInt | SupportsIndex)

This class stores Spherical Harmonics coefficients data and provides utilities to process it. Data is loaded through auxiliar objects such as GravityField or AOD1B.

Contructor for SphericalHarmonics object. The constructor only defines the internal storing structure.

Parameters:

l_max (int) – Cut-off degree.

property coefficients

This property points to the (L+1)x(L+1) dense matrix storing the SH coefficients. The matrix structure is as follows.

\[\begin{split}\Sigma_{xx} = \begin{bmatrix} \bar{C}_{00} & \bar{S}_{11} & \cdots & \bar{S}_{L1} \\ \bar{C}_{10} & \bar{C}_{11} & \cdots & \bar{S}_{L2} \\ \vdots & \vdots & \ddots & \vdots \\ \bar{C}_{L0} & \bar{C}_{L1} & \cdots & \bar{C}_{LL} \end{bmatrix}\end{split}\]
degree_variance(self: gfeatpy._core.gravity.SphericalHarmonics, use_sigmas: bool) → Annotated[numpy.typing.NDArray[numpy.float64], '[m, 1]']

This function computes degree variance spectrum from the values of the SH coefficients.

\[\sigma_l^2 = \sum_{m=0}^{l} \bar{C}_{lm}^2 + \bar{S}_{lm}^2\]
Parameters:

use_sigmas (bool) – Flag to indicate if the standard deviations are used instead of the coefficients.

gravity(self: gfeatpy._core.gravity.SphericalHarmonics, r_ecef: Annotated[numpy.typing.ArrayLike, numpy.float64, '[3, 1]']) → Annotated[numpy.typing.NDArray[numpy.float64], '[3, 1]']

Function that evaluates the gravity vector in the Earth-Centered-Earth-Fixed frame (ECEF).

Parameters:

r_ecef (numpy.ndarray) – 3D position in the ECEF frame.

Returns:

3D gravity vector in the ECEF frame.

Return type:

numpy.ndarray

potential(self: gfeatpy._core.gravity.SphericalHarmonics, r_ecef: Annotated[numpy.typing.ArrayLike, numpy.float64, '[3, 1]']) → float

Function that evaluates gravity field perturbing potential in the Earth-Centered-Earth-Fixed (ECEF) frame .

Parameters:

r_ecef (numpy.ndarray) – 3D position in the ECEF frame.

Returns:

Gravity field perturbing potential.

Return type:

float

rms_per_coefficient_per_degree(self: gfeatpy._core.gravity.SphericalHarmonics, use_sigmas: bool) → Annotated[numpy.typing.NDArray[numpy.float64], '[m, 1]']

This function computes RMS per coefficient per degree from the values of the SH coefficients.

\[\delta_l = \sqrt{\sum_{m=0}^{l} \frac{\bar{C}_{lm}^2 + \bar{S}_{lm}^2}{2l+1}}\]
Parameters:

use_sigmas (bool) – Flag to indicate if the standard deviations are used instead of the coefficients.

property sigmas

This property points to the (L+1)x(L+1) dense matrix storing the standard deviations of the SH coefficients. The matrix structure is equivalent to coefficients.

synthesis(self: gfeatpy._core.gravity.SphericalHarmonics, arg0: SupportsInt | SupportsIndex, arg1: SupportsInt | SupportsIndex, arg2: gfeatpy._core.gravity.BaseFunctional) → tuple[Annotated[numpy.typing.NDArray[numpy.float64], '[m, n]'], Annotated[numpy.typing.NDArray[numpy.float64], '[m, n]'], Annotated[numpy.typing.NDArray[numpy.float64], '[m, n]']]

This function performs Global Spherical Harmonics Synthesis according to the input gravity field functional.

\[y(\lambda, \phi) = \sum_{l=2}^{L} \sum_{m=0}^{l} f(l) \bar{P}_{lm}(\sin{\phi}) (\bar{C}_{lm} \cos{m\lambda} + \bar{S}_{lm} \sin{m\lambda})\]

It makes use of the two-step fold proposed by Rizos (1979) as well as the FFT for efficient computation.

Parameters:

  • n_lon (int) – Number of nodes along the longitude direction.

  • n_lat (int) – Number of nodes along the latitude direction.

  • functional (BaseFunctional) – Gravity field functional to perform the synthesis.

Returns:

  • numpy.ndarray – A 2D array with longitude values for the lon/lat grid.

  • numpy.ndarray – A 2D array with latitude values for lon/lat grid.

  • numpy.ndarray – A 2D array with functional values on the lon/lat grid.

class gfeatpy.gravity.SphericalHarmonicsCovariance(self: gfeatpy._core.gravity.SphericalHarmonicsCovariance, l_max: SupportsInt | SupportsIndex)

This class stores the full covariance matrix from a gravity field solution and provides utilities to process it.

Constructor for SphericalHarmonicsCovariance object. The constructor only defines the inner structure of the matrix. Data can be load through different loading functions depending on the file type.

Parameters:

l_max (int) – Cut-off degree.

property Pxx

Attribute that stores the full covariance matrix.

degree_variance(self: gfeatpy._core.gravity.SphericalHarmonicsCovariance) → Annotated[numpy.typing.NDArray[numpy.float64], '[m, 1]']

This function computes degree variance spectrum from the standard deviation of the SH coefficients.

\[\sigma_l^2 = \sum_{m=0}^{l} \sigma^2(\bar{C}_{lm}) + \sigma^2(\bar{S}_{lm})\]
from_normal(self: gfeatpy._core.gravity.SphericalHarmonicsCovariance, filename: str, scaling_factor: SupportsFloat | SupportsIndex) → gfeatpy._core.gravity.SphericalHarmonicsCovariance

Function to fill the SH covariance matrix through inversion of the normal matrix as provided by an input Sinex file.

Parameters:

  • filename (string) – Path to Sinex file that contains the normal matrix.

  • scaling_factor (float) – Scaling factor to be applied to the normal matrix.

rms_per_coefficient_per_degree(self: gfeatpy._core.gravity.SphericalHarmonicsCovariance) → Annotated[numpy.typing.NDArray[numpy.float64], '[m, 1]']

This function computes RMS per coefficient per degree from the standard deviation of the SH coefficients.

\[\delta_l = \sqrt{\sum_{m=0}^{l} \frac{\sigma^2(\bar{C}_{lm}) + \sigma^2(\bar{S}_{lm})}{2l+1}}\]
synthesis(self: gfeatpy._core.gravity.SphericalHarmonicsCovariance, n_lon: SupportsInt | SupportsIndex, n_lat: SupportsInt | SupportsIndex, functional: gfeatpy._core.gravity.BaseFunctional) → tuple[Annotated[numpy.typing.NDArray[numpy.float64], '[m, n]'], Annotated[numpy.typing.NDArray[numpy.float64], '[m, n]'], Annotated[numpy.typing.NDArray[numpy.float64], '[m, n]']]

This function performs covariance propagation from the SH covariance into the sphere according to the input gravity field functional.

\[\sigma_{y}(\lambda, \phi) = v P_{xx} v^T\]

It makes use of the two-step fold proposed by Rizos (1979) as well as the FFT for efficient computation.

Parameters:

  • n_lon (int) – Number of nodes along the longitude direction.

  • n_lat (int) – Number of nodes along the latitude direction.

  • functional (BaseFunctional) – Gravity field functional to perform the synthesis.

Returns:

  • numpy.ndarray – A 2D array with longitude values for the lon/lat grid.

  • numpy.ndarray – A 2D array with latitude values for lon/lat grid.

  • numpy.ndarray – A 2D array with the commission error values for the input functional on the lon/lat grid.

Observation module

The observation module handles the computation of the spectral observations. For this purpose, different functionalities are defined in abstract objects and inherited towards the actual usable observation classes.

Inheritance diagram of gfeatpy.observation.AbstractKiteSystem, gfeatpy.observation.BaseObservation, gfeatpy.observation.MultiObservation, gfeatpy.observation.Radial, gfeatpy.observation.CrossTrack, gfeatpy.observation.AlongTrack, gfeatpy.observation.Potential, gfeatpy.observation.Range, gfeatpy.observation.Constellation, gfeatpy.observation.GPS

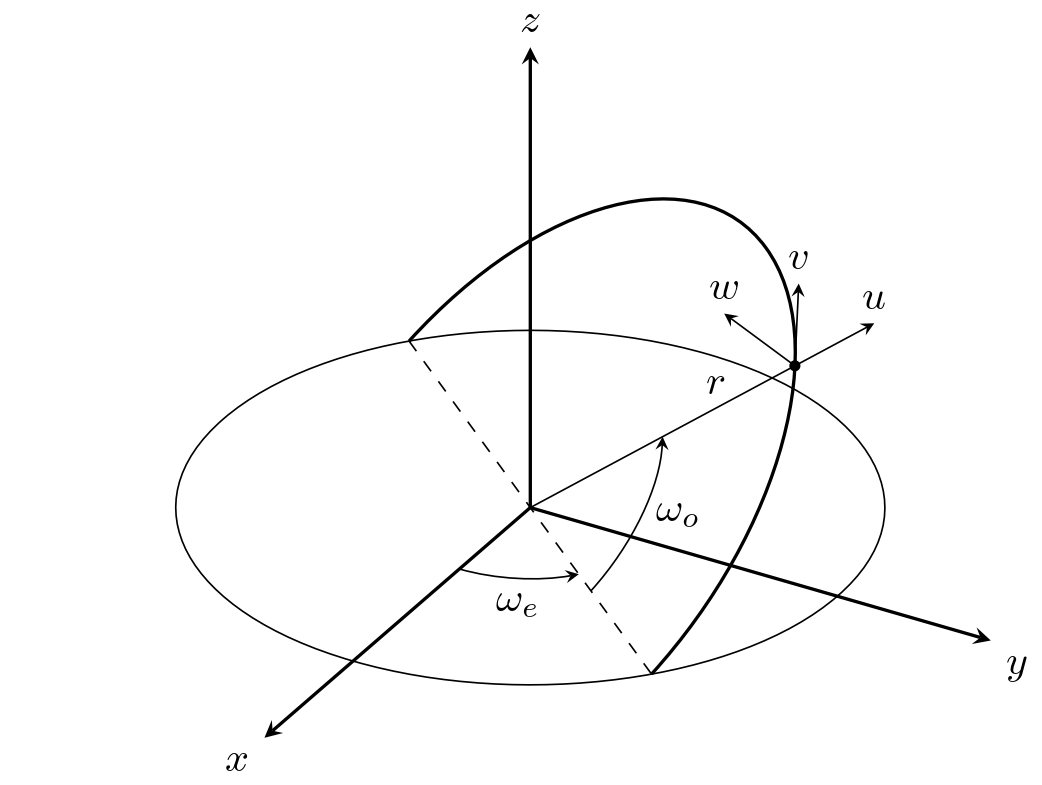

The observations require the definition of different orbital elements which are relative to the Earth frame as depicted below.

Orbital elements figure
class gfeatpy.observation.AbstractKiteSystem

AbstractKiteSystem class defines the base object that handles the block-kite structure of the linear system of equations along a circular repeating ground-track.

degree_variance(self: gfeatpy._core.observation.AbstractKiteSystem) → Annotated[numpy.typing.NDArray[numpy.float64], '[m, 1]']

This function computes degree variance spectrum from the standard deviation of the SH coefficients.

\[\sigma_l^2 = \sum_{m=0}^{l} \sigma^2(C_{lm}) + \sigma^2(S_{lm})\]
get_N(self: gfeatpy._core.observation.AbstractKiteSystem) → Annotated[numpy.typing.NDArray[numpy.float64], '[m, n]']

Getter for full normal matrix.

Returns:

Full normal matrix.

Return type:

ndarray

get_Pxx(self: gfeatpy._core.observation.AbstractKiteSystem) → Annotated[numpy.typing.NDArray[numpy.float64], '[m, n]']

Getter for full parameter covariance matrix.

Returns:

Full parameter covariance matrix.

Return type:

ndarray

get_sigma_x(self: gfeatpy._core.observation.AbstractKiteSystem) → Annotated[numpy.typing.NDArray[numpy.float64], '[m, n]']

Returns the compact matrix storing the standard deviation of the parameters, the SH coefficients. See coefficients for the matrix structure.

rms_per_coefficient_per_degree(self: gfeatpy._core.observation.AbstractKiteSystem) → Annotated[numpy.typing.NDArray[numpy.float64], '[m, 1]']

This function computes RMS per coefficient per degree from the standard deviation of the SH coefficients.

\[\delta_l = \sqrt{\sum_{m=0}^{l} \frac{\sigma^2(C_{lm}) + \sigma^2(S_{lm})}{2l+1}}\]
set_Clm_constraint(self: gfeatpy._core.observation.AbstractKiteSystem, l: SupportsInt | SupportsIndex, m: SupportsInt | SupportsIndex, sigma: SupportsFloat | SupportsIndex) → None

This function sets a constraint on the standard deviation of a specific Clm coefficient.

Parameters:

  • l (int) – Degree of the spherical harmonic.

  • m (int) – Order of the spherical harmonic.

  • sigma (double) – Standard deviation of the Clm coefficient.

set_Slm_constraint(self: gfeatpy._core.observation.AbstractKiteSystem, l: SupportsInt | SupportsIndex, m: SupportsInt | SupportsIndex, sigma: SupportsFloat | SupportsIndex) → None

This function sets a constraint on the standard deviation of a specific Slm coefficient.

Parameters:

  • l (int) – Degree of the spherical harmonic.

  • m (int) – Order of the spherical harmonic.

  • sigma (double) – Standard deviation of the Slm coefficient.

set_kaula_regularization(self: gfeatpy._core.observation.AbstractKiteSystem, K: SupportsFloat | SupportsIndex = 1e-05) → None

This function introduces Kaula’s rule to solve the linear system. It provides a constraint on the standard deviation of the parameters as defined by Kaula’s power rule:

\[\sigma\{\bar{C}_{lm}, \bar{S}_{lm}\} = \frac{K}{l^2}\]
Parameters:

K (float) – Kaula’s constant for the empirical Kaula’s rule”

set_solution_time_window(self: gfeatpy._core.observation.AbstractKiteSystem, time_window: SupportsFloat | SupportsIndex) → None

Setter for the time window \(T\) of data accumulation that contributes to a gravity field solution. It is therefore the sampling time of the gravity field. It defines the frequency resolution \(\Delta f=1/T\) that is employed to compute the error in the lumped coefficients from the amplitude spectral density.

By default, the solution time window is set to the repeatability period of the ground-track.

Parameters:

time_window (float) – Solution time window in days.

Warning

Note that when there is not a commensurability with the ground-track repeatability time, the solutions might be inaccurate, since the periodicity of the orbit is not fulfilled. Solutions with a time window lower than the ground-track repeatability time are highly unrecommended.

solve(self: gfeatpy._core.observation.AbstractKiteSystem) → None

This function solves for the parameter covariance \(P_{xx}\) making use of least squares error propagation.

\[P_{xx} = (H^T P_{yy}^{-1} H + P_{cc}^{-1})^{-1}\]

Cholesky decomposition allows for leveraging the symmetry of the normal matrix for efficient inversion.

synthesis(self: gfeatpy._core.observation.AbstractKiteSystem, n_lon: SupportsInt | SupportsIndex, n_lat: SupportsInt | SupportsIndex, functional: BaseFunctional) → tuple[Annotated[numpy.typing.NDArray[numpy.float64], '[m, n]'], Annotated[numpy.typing.NDArray[numpy.float64], '[m, n]'], Annotated[numpy.typing.NDArray[numpy.float64], '[m, n]']]

This function performs covariance propagation from the parameter covariance into the sphere according to the input gravity field functional.

\[\sigma_{y}(\lambda, \phi) = v P_{xx} v^T\]

It makes use of the two-step fold proposed by Rizos (1979) for efficient computation. It does not use FFT since the sparsity of the design and parameter covariance matrices makes it less efficient than summation along the dense blocks.

Parameters:

  • n_lon (int) – Number of nodes along the longitude direction.

  • n_lat (int) – Number of nodes along the latitude direction.

  • functional (BaseFunctional) – Gravity field functional to perform the synthesis.

Returns:

  • numpy.ndarray – A 2D array with longitude values for the lon/lat grid.

  • numpy.ndarray – A 2D array with latitude values for lon/lat grid.

  • numpy.ndarray – A 2D array with the commission error values for the input functional on the lon/lat grid.

synthesis_average(self: gfeatpy._core.observation.AbstractKiteSystem, functional: BaseFunctional) → float

This function computes the average on the sphere of the comission error of the input gravity field functional. For this purpose, orthogonal properties of spherical harmonics are leveraged.

\[\hat{\sigma}_{y} = \frac{1}{4\pi} \int_{\Omega} \sigma_y(\lambda, \phi) \, d\Omega\]
Parameters:

functional (BaseFunctional) – Gravity field functional to perform the synthesis.

Returns:

Commission error spherical average for input functional.

Return type:

float

class gfeatpy.observation.AlongTrack(self: gfeatpy._core.observation.AlongTrack, l_max: SupportsInt | SupportsIndex, Nr: SupportsInt | SupportsIndex, Nd: SupportsInt | SupportsIndex, I: SupportsFloat | SupportsIndex, we_0: SupportsFloat | SupportsIndex = 0, wo_0: SupportsFloat | SupportsIndex = 0)

Bases: BaseObservation

This class defines the position displacement observation in the along-track direction.

Constructor for the AlongTrack class.

Parameters:

  • l_max (int) – Cut-off degree.

  • Nr (int) – Number of orbital revolutions per ground-track repeatability period.

  • Nd (int) – Nodal days per ground-track repeatability period.

  • I (float) – Inclination [rad].

  • we_0 (float) – Initial Earth-fixed longitude of the ascending node [rad].

  • wo_0 (float) – Initial argument of latitude [rad].

class gfeatpy.observation.BaseObservation

Bases: AbstractKiteSystem

BaseObservation class defines the base object for any observation along a circular orbit. It is a derived class from AbstractKiteSystem, which provides the structure of the linear system of equations along a circular repeating ground-track. This class defines some additional settings that depend on the observations themselves, such as the vertical length of the block-design matrices, the actual orbital radius or the amplitude spectral density for the lumped coefficients. Moreover, it provides a framework to define any arbitrary design matrix.

get_H(self: gfeatpy._core.observation.BaseObservation) → Annotated[numpy.typing.NDArray[numpy.float64], '[m, n]']

Getter for the full design matrix.

Returns:

Full design matrix.

Return type:

ndarray

get_Pyy(self: gfeatpy._core.observation.BaseObservation) → Annotated[numpy.typing.NDArray[numpy.float64], '[m, n]']

Getter for the full observation covariance matrix.

Returns:

Full observation covariance matrix.

Return type:

ndarray

get_asd(self: gfeatpy._core.observation.BaseObservation) → collections.abc.Callable[[SupportsFloat | SupportsIndex], float]

Getter for the observation error in terms of Amplitude Spectral Denisty (ASD).

Returns:

ASD function

Return type:

Callable[[float], float]

get_radius(self: gfeatpy._core.observation.BaseObservation) → float

Getter for orbital radius associated to the Repeating Ground-Track selected.

Returns:

Orbital radius associated to the Repeating Ground-Track of the observation.

Return type:

float

get_we_0(self: gfeatpy._core.observation.BaseObservation) → float

Getter for the initial planet-centred longitude associated to the Repeating Ground-Track selected.

Returns:

Initial planet-centred longitude associated to the Repeating Ground-Track of the observation.

Return type:

float

get_wo_0(self: gfeatpy._core.observation.BaseObservation) → float

Getter for the initial argument of latitude associated to the Repeating Ground-Track selected.

Returns:

Initital argument of latitude associated to the Repeating Ground-Track of the observation.

Return type:

float

set_observation_error(self: gfeatpy._core.observation.BaseObservation, asd: collections.abc.Callable[[SupportsFloat | SupportsIndex], float]) → None

This function sets the lumped coefficients error in the frequency domain from the Amplitude Spectral Density of the observation (Sneeuw, 2000).

\[\sigma_{km} = \int_{f_{km}+\Delta f/2}^{f_{km}+\Delta f/2} A^2(f) \, df \approx A^2(f_{km}) \Delta f\]
Parameters:

asd (Callable[[float], float]) – Function that defines the amplitude spectral density for an input frequency.

simulate_observations(self: gfeatpy._core.observation.BaseObservation, gravity_field: GravityField) → dict[int, tuple[float, float]]

This function simulates analytically the values of the lumped coefficients \(A_{km}, B_{km}\) from an input GravityField.

Parameters:

gravity_field (GravityField) – Gravity field object to fill the parameter vector \(x\).

Returns:

Dictionary that contains the integered frequencies as keys and the associated \(A_{km}, B_{km}\) coefficients as values.

Return type:

dict[int, tuple[float, float]]

class gfeatpy.observation.Constellation(self: gfeatpy._core.observation.Constellation, l_max: typing.SupportsInt | typing.SupportsIndex, Nr: typing.SupportsInt | typing.SupportsIndex, Nd: typing.SupportsInt | typing.SupportsIndex, I: typing.Annotated[numpy.typing.ArrayLike, numpy.float64, "[m, 1]"], rho_0: typing.SupportsFloat | typing.SupportsIndex, longitude_policy: gfeatpy._core.observation.LongitudePolicy = <LongitudePolicy.INTERLEAVING: 0>)

Bases: MultiObservation

This class wraps the MultiObservation class to handle constellations in a simplified way.

Note

This class assumes that the observation type is Collinear. Future versions will extend the class to any observation type.

Parameters:

  • l_max (int) – Cut-off degree.

  • Nr (int) – Number of orbital revolutions per ground-track repeatability period.

  • Nd (int) – Nodal days per ground-track repeatability period.

  • I (list[float]) – List of inclinations of the different repeating orbits [rad].

  • rho_0 (float) – Nominal intersatellite distance [m].

  • longitude_policy (LongitudePolicy) – Longitude separation policy.

set_observation_error(self: gfeatpy._core.observation.Constellation, range_instrument_asd: collections.abc.Callable[[SupportsFloat | SupportsIndex], float], accelerometer_asd: collections.abc.Callable[[SupportsFloat | SupportsIndex], float]) → None

An important error contribution to the range observation error is also the error in the accelerometer. This error propagates to the range observation. This function accounts for this propagation internally.

Parameters:

  • range_instrument_asd (Callable[[float], float]) – Ranging instrument amplitude spectral density for an input frequency.

  • accelerometer_asd (Callable[[float], float]) – Accelerometer amplitude spectral density for an input frequency.

class gfeatpy.observation.GPS(self: gfeatpy._core.observation.GPS, l_max: SupportsInt | SupportsIndex, Nr: SupportsInt | SupportsIndex, Nd: SupportsInt | SupportsIndex, I: SupportsFloat | SupportsIndex, we_0: SupportsFloat | SupportsIndex, wo_0: SupportsFloat | SupportsIndex)

Bases: MultiObservation

set_observation_error(self: gfeatpy._core.observation.GPS, sigma_u: SupportsFloat | SupportsIndex, sigma_v: SupportsFloat | SupportsIndex, sigma_w: SupportsFloat | SupportsIndex, ddu_asd: collections.abc.Callable[[SupportsFloat | SupportsIndex], float], ddv_asd: collections.abc.Callable[[SupportsFloat | SupportsIndex], float], ddw_asd: collections.abc.Callable[[SupportsFloat | SupportsIndex], float]) → None

Set the observation error for each component of the GPS observation.

Parameters:

  • sigma_u (float) – Standard deviation of the radial component

  • sigma_v (float) – Standard deviation of the along-track component

  • sigma_w (float) – Standard deviation of the cross-track component

  • ddu_asd (Callable[[float], float]) – Amplitude spectral density of the radial acceleration

  • ddv_asd (Callable[[float], float]) – Amplitude spectral density of the along-track acceleration

  • ddw_asd (Callable[[float], float]) – Amplitude spectral density of the cross-track acceleration

enum gfeatpy.observation.LongitudePolicy

Enumeration that defines the two built-in longitude separation policies for the Constellation class.

INTERLEAVING

The ground-tracks are perfectly interleaved at the equator.

OVERLAPPING

The ground-tracks overlap at the equator.

class gfeatpy.observation.MultiObservation(self: gfeatpy._core.observation.MultiObservation, l_max: SupportsInt | SupportsIndex, Nr: SupportsInt | SupportsIndex, Nd: SupportsInt | SupportsIndex, observations: collections.abc.Sequence[gfeatpy._core.observation.BaseObservation])

Bases: AbstractKiteSystem

This class takes a list of attr:~gfeatpy.observation.BaseObservation objects to compute the combined performance of multiple observations.

Warning

To maintain the simplicity of the block-kite system, this class only supports observations with the same associated ground-track repeatability conditions (same number of revolutions \(N_r\) as well as nodal days \(N_d\)). In this way, the individual block-kite structure of every observation can be applied to the system of combined observations.

Constructor for MultiObservation class

Parameters:

  • l_max (int) – Cut-off degree.

  • Nr (int) – Number of orbital revolutions per ground-track repeatability period.

  • Nd (int) – Nodal days per ground-track repeatability period.

  • observations (list[BaseObservation]) – List of single observation objects to be combined

get_observations(self: gfeatpy._core.observation.MultiObservation) → list[gfeatpy._core.observation.BaseObservation]

Getter for the individual observations

Returns:

List of single observation objects that form the combined observation

Return type:

list[BaseObservation]

class gfeatpy.observation.Potential(self: gfeatpy._core.observation.Potential, l_max: SupportsInt | SupportsIndex, Nr: SupportsInt | SupportsIndex, Nd: SupportsInt | SupportsIndex, I: SupportsFloat | SupportsIndex, we_0: SupportsFloat | SupportsIndex = 0, wo_0: SupportsFloat | SupportsIndex = 0)

Bases: BaseObservation

This class defines the perturbing potential observation for a circular orbit.

Constructor for the Radial class.

Parameters:

  • l_max (int) – Cut-off degree.

  • Nr (int) – Number of orbital revolutions per ground-track repeatability period.

  • Nd (int) – Nodal days per ground-track repeatability period.

  • I (float) – Inclination [rad].

  • we_0 (float) – Initial Earth-fixed longitude of the ascending node [rad].

  • wo_0 (float) – Initial argument of latitude [rad].

class gfeatpy.observation.Radial(self: gfeatpy._core.observation.Radial, l_max: SupportsInt | SupportsIndex, Nr: SupportsInt | SupportsIndex, Nd: SupportsInt | SupportsIndex, I: SupportsFloat | SupportsIndex, we_0: SupportsFloat | SupportsIndex = 0, wo_0: SupportsFloat | SupportsIndex = 0)

Bases: BaseObservation

This class defines the position displacement observation in the radial direction.

Constructor for the Radial class.

Parameters:

  • l_max (int) – Cut-off degree.

  • Nr (int) – Number of orbital revolutions per ground-track repeatability period.

  • Nd (int) – Nodal days per ground-track repeatability period.

  • I (float) – Inclination [rad].

  • we_0 (float) – Initial Earth-fixed longitude of the ascending node [rad].

  • wo_0 (float) – Initial argument of latitude [rad].

class gfeatpy.observation.Range(self: gfeatpy._core.observation.Range, l_max: SupportsInt | SupportsIndex, Nr: SupportsInt | SupportsIndex, Nd: SupportsInt | SupportsIndex, I: SupportsFloat | SupportsIndex, rho_0: SupportsFloat | SupportsIndex, we_0: SupportsFloat | SupportsIndex = 0, wo_0: SupportsFloat | SupportsIndex = 0)

Bases: BaseObservation

Constructor for the Range class.

Parameters:

  • l_max (int) – Cut-off degree.

  • Nr (int) – Number of orbital revolutions per ground-track repeatability period.

  • Nd (int) – Nodal days per ground-track repeatability period.

  • I (float) – Inclination [rad].

  • rho_0 (float) – Nominal intersatellite distance [m].

  • we_0 (float) – Initial Earth-fixed longitude of the ascending node [rad].

  • wo_0 (float) – Initial argument of latitude [rad].

set_observation_error(self: gfeatpy._core.observation.Range, range_instrument_asd: collections.abc.Callable[[SupportsFloat | SupportsIndex], float], accelerometer_asd: collections.abc.Callable[[SupportsFloat | SupportsIndex], float]) → None

An important error contribution to the range observation error is also the error in the accelerometer. This error propagates to the range observation. This function accounts for this propagation internally.

Parameters:

  • range_instrument_asd (Callable[[float], float]) – Ranging instrument amplitude spectral density for an input frequency.

  • accelerometer_asd (Callable[[float], float]) – Accelerometer amplitude spectral density for an input frequency.

Plotting module

class gfeatpy.plotting.DegreeAmplitudePlotter(figsize, functional=None)[source]

Bases: object

Class to plot the RMS per coefficient per degree spectrum

It allows for adding as many objects as needed with a lot of flexibility for formatting

Constructor for DegreeAmplitudePlotter class.

Parameters:

  • figsize (tuple) – matplotlib figure size

  • functional (BaseFunctional) – BaseFunctional object to scale be applied to the RMS values

add_item(object, *args, show_error=None, **kwargs)[source]

Add an item to the degree amplitude plot.

Parameters:

  • object – Any object containing SH coefficients or errors

  • args – Additional positional arguments to be passed to ax.semilogy

  • show_error – A boolean to indicate whether to plot the error (True) or the signal (False). If None, the signal is plotted by default.

  • kwargs – Additional keyword arguments to be passed to ax.semilogy

show()[source]

Wrapper for show method

class gfeatpy.plotting.GroundTrackExplorer(h_min, h_max, Nd_max)[source]

Bases: object

Class to explore repeating ground tracks for the global planet object as defined in gfeatpy.planet. It is essential for orbit selection since Nr and Nd are input arguments for analytical observations within gfeatpy.observation module.

Constructor for GroundTrackExplorer class.

Parameters:

  • h_min (float) – Minimum orbit height [m]

  • h_max (float) – Maximum orbit height [m]

  • Nd_max (int) – Maximum number of nodal days to consider

run(I)[source]

Explore repeating ground tracks within explorer bounds for given inclination.

Parameters:

I – Inclination [rad]

show()[source]

Wrapper for show method

gfeatpy.plotting.ground_track(Nr, Nd, I, we_0=0, wo_0=0, samples_per_rev=3000, **kwargs)[source]

Function to plot any repeating ground track. Generally to be used along with gfeatpy.plotting.synthesis() to observe ground-track correlation

Parameters:

  • Nr – Number of revolutions

  • Nd – Nodal days

  • I – Inclination [rad]

  • we_0 – Initial Earth-fixed longitude of ascending node [rad]

  • wo_0 – Initial Earth-fixed argument of latitude [rad]

  • samples_per_rev – Samples per revolution (higher = smoother ground-track)

  • kwargs – Additional keyword arguments to be passed to plt.scatter

gfeatpy.plotting.pyramid(base_object, colormap='jet')[source]

Function to plot the SH coefficients in a pyramid format.

Parameters:

  • base_object – Any object containing SH coefficients or errors

  • colormap – Colormap to use for plotting

gfeatpy.plotting.synthesis(base_object, n_lon, n_lat, functional, colormap='seismic', z_max=None)[source]

Plot the global SH synthesis on an Earth map. (To DO: add option to remove Earth map background)

Parameters:

  • base_object – Any object containing SH coefficients or errors

  • n_lon (int) – Number of longitude points

  • n_lat (int) – Number of latitude points

  • functional (BaseFunctional) – Any synthesis functional: GravityAnomaly, EquivalentWaterHeight, GeoidHeight

  • colormap (str) – Colormap to use for plotting

  • z_max (float) – Cutting value for the color scale

Utils module

gfeatpy.utils.R1(arg0: SupportsFloat | SupportsIndex) → Annotated[numpy.typing.NDArray[numpy.float64], '[3, 3]']
gfeatpy.utils.R2(arg0: SupportsFloat | SupportsIndex) → Annotated[numpy.typing.NDArray[numpy.float64], '[3, 3]']
gfeatpy.utils.R3(arg0: SupportsFloat | SupportsIndex) → Annotated[numpy.typing.NDArray[numpy.float64], '[3, 3]']
class gfeatpy.utils.Verbosity(self: gfeatpy._core.utils.Verbosity, value: SupportsInt | SupportsIndex)

Bases: pybind11_object

Members:

Silent

Info

property name
gfeatpy.utils.aop_dot(arg0: SupportsFloat | SupportsIndex, arg1: SupportsFloat | SupportsIndex, arg2: SupportsFloat | SupportsIndex) → float
gfeatpy.utils.cart2sph(arg0: Annotated[numpy.typing.ArrayLike, numpy.float64, '[3, 1]']) → Annotated[numpy.typing.NDArray[numpy.float64], '[3, 1]']
gfeatpy.utils.eci2ecrf(*args, **kwargs)

Overloaded function.

  1. eci2ecrf(r_eci: typing.Annotated[numpy.typing.ArrayLike, numpy.float64, “[3, 1]”], t: typing.SupportsFloat | typing.SupportsIndex) -> typing.Annotated[numpy.typing.NDArray[numpy.float64], “[3, 1]”]

  2. eci2ecrf(r_eci: typing.Annotated[numpy.typing.ArrayLike, numpy.float64, “[3, 1]”], v_eci: typing.Annotated[numpy.typing.ArrayLike, numpy.float64, “[3, 1]”], t: typing.SupportsFloat | typing.SupportsIndex) -> tuple[typing.Annotated[numpy.typing.NDArray[numpy.float64], “[3, 1]”], typing.Annotated[numpy.typing.NDArray[numpy.float64], “[3, 1]”]]

gfeatpy.utils.ecrf2eci(*args, **kwargs)

Overloaded function.

  1. ecrf2eci(r_ecrf: typing.Annotated[numpy.typing.ArrayLike, numpy.float64, “[3, 1]”], t: typing.SupportsFloat | typing.SupportsIndex) -> typing.Annotated[numpy.typing.NDArray[numpy.float64], “[3, 1]”]

  2. ecrf2eci(r_ecrf: typing.Annotated[numpy.typing.ArrayLike, numpy.float64, “[3, 1]”], v_ecrf: typing.Annotated[numpy.typing.ArrayLike, numpy.float64, “[3, 1]”], t: typing.SupportsFloat | typing.SupportsIndex) -> tuple[typing.Annotated[numpy.typing.NDArray[numpy.float64], “[3, 1]”], typing.Annotated[numpy.typing.NDArray[numpy.float64], “[3, 1]”]]

gfeatpy.utils.ma_dot(arg0: SupportsFloat | SupportsIndex, arg1: SupportsFloat | SupportsIndex, arg2: SupportsFloat | SupportsIndex) → float
gfeatpy.utils.raan_dot(arg0: SupportsFloat | SupportsIndex, arg1: SupportsFloat | SupportsIndex, arg2: SupportsFloat | SupportsIndex) → float
gfeatpy.utils.rfft(arg0: Annotated[numpy.typing.ArrayLike, numpy.float64, '[m, 1]']) → Annotated[numpy.typing.NDArray[numpy.complex128], '[m, 1]']
gfeatpy.utils.sma_from_rgt(arg0: SupportsInt | SupportsIndex, arg1: SupportsInt | SupportsIndex, arg2: SupportsFloat | SupportsIndex, arg3: SupportsFloat | SupportsIndex, arg4: SupportsFloat | SupportsIndex, arg5: SupportsInt | SupportsIndex, arg6: SupportsFloat | SupportsIndex, arg7: SupportsFloat | SupportsIndex) → float
gfeatpy.utils.sph2cart(arg0: Annotated[numpy.typing.ArrayLike, numpy.float64, '[3, 1]']) → Annotated[numpy.typing.NDArray[numpy.float64], '[3, 1]']
